If you’re considering a DIY solar installation to save costs, it’s essential to understand the balance between savings and safety. Do-it-yourself approaches may initially cut expenses but can pose a significant risk in terms of safety and compliance, which could result in a waste of your investment. As well as not functioning properly, improper installation could bring about electrical faults, escalating fire risks. Not exactly the result you want when making improvements to your property!

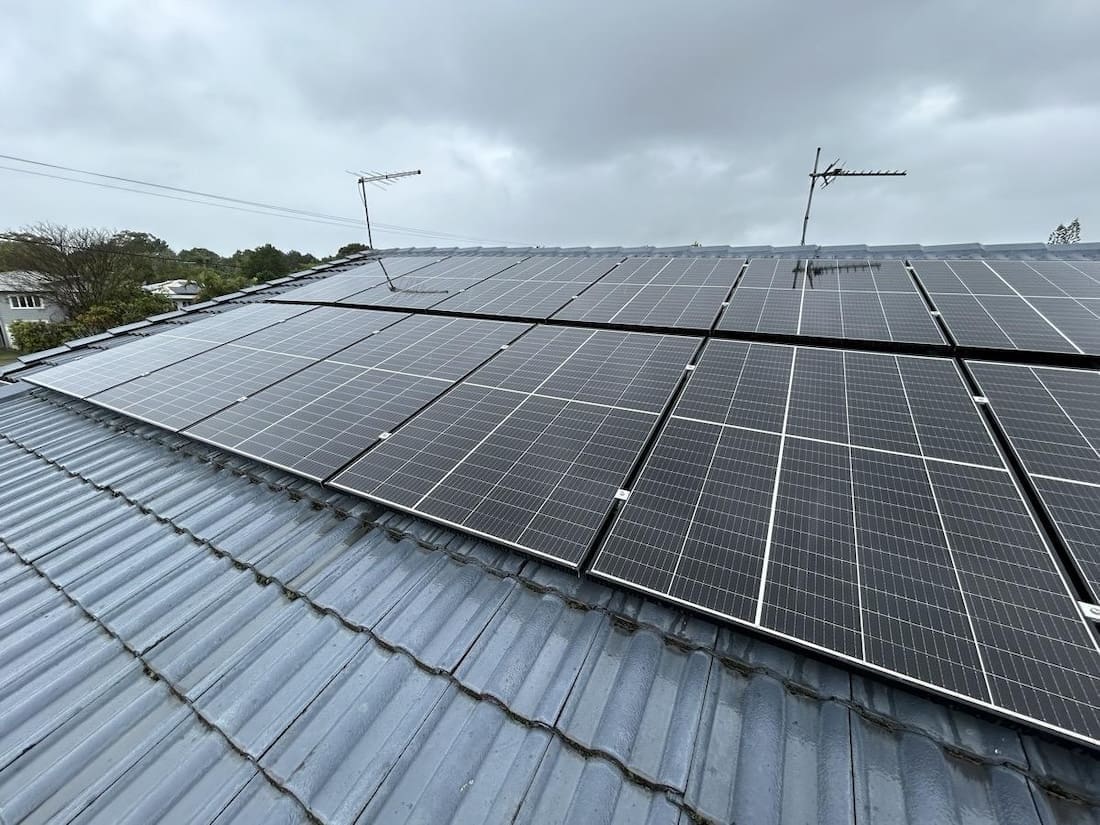

“While DIY solar installations may offer initial cost savings, it’s crucial to recognise the potential safety hazards and warranty implications,” says Troy Fox from Brisbane-based solar installation company Evergreen Electrical. “Many manufacturers’ warranties also require professional installation to remain valid,” he adds.
Related article: Home improvements to make before moving into your new home
Related article: Understanding your electricity bill: A new homeowner’s guide
Understand DIY solar panels
Building a solar panel may seem challenging, but understanding the materials and steps simplifies the process. Key materials include solar cells, tabbing wire, silicon sealant, soldering iron, safety glass or Plexiglas, and pegboard or plywood.
Planning is crucial. Begin by determining the voltage and power output your household requires and where you’ll install the panels.
- Determine materials: Gather all necessary parts like solar cells, tabbing wire, silicon sealant, etc.
- Create a plan: Assess required voltage and design the panel layout accordingly.
- Assemble the panel: Follow detailed guides like this one to assemble and protect your panel.
- Set up electrical components: Learn to connect a charge controller, battery, and inverter for household use.
Determine your energy needs
Before going solar, assess your energy needs by reviewing your electricity bills to understand your annual consumption in kilowatt-hours (kWh).
Track seasonal usage
Energy use fluctuates throughout the year. Analyse monthly consumption to gauge usage during different seasons.
Forecast future changes
Anticipate larger electricity needs due to potential home additions or electric vehicles to ensure your solar system can accommodate them.
Improve energy efficiency
Implement cost-effective measures like conducting a home energy audit, investing in high-efficiency appliances, LED lighting, and weatherising your home.
Size your solar system
Base your system size on your electricity needs, sunlight availability, system orientation and tilt, and conversion efficiency.
Maximise solar potential
Use mapping services to estimate your home’s solar potential. Work with an installer to optimise your system’s daily and annual energy benefits.
Gather necessary permits
Solar panel installation requires specific permits for safety, compliance, and grid connection.
Even DIY projects need permits unless exceptions apply, like off-grid systems (check local regulations).
- Electrical permit: For all electrical work related to installation.
- Building permit: Ensures compliance with local building codes.
- Zoning permit: Needed for ground-mounted or commercial installations.
- Solar PV permit: Specific to the photovoltaic system.
Permits involve the Local Building Department/AHJ and your electric utility company, which issues the interconnection permit.
Prepare tools and equipment
Having the right tools and equipment is essential for a successful DIY solar installation.
Hand tools like screwdrivers, pliers, wire strippers, and cutters are needed. Power tools such as drills or impact drivers may be required.
Safety gear is compulsory: hard hats, safety glasses, and work gloves.
- Measurement tools: Tape measure, level, chalk line, stud finder.
- Solar-specific equipment: MC3 & MC4 crimping tool, solar panel hangers, and rails.
- Electrical tools: Digital multimeters and wire test kits for detecting electrical problems.
- Additional materials: Solar panels, inverters, monitoring systems.
Prioritise safety during installation by using proper gear and tools.
Safe inverter installation
Installing a solar inverter requires careful consideration for safety.
Select a location with ample shade to protect the inverter from direct sunlight and moisture, preventing overheating and corrosion.
Ensure proper ventilation for heat dissipation.
- Height restrictions: Install the inverter at least 500mm off the ground and no more than 2 meters high.
- Prevent electrical hazards: Ground the inverter to safeguard against short circuits and surges.
- Safety protocols: Follow safety guidelines and use insulated tools.
- Consider professional installation: Hiring a professional ensures safety and may protect your warranty.
Always prioritise safety and quality for an efficient setup.
Solar panels installation steps
The following step-by-step guide will help you install solar panels.
First steps before installing panels
Determine local laws and incentives regarding size, permits, and installation rules to save time and money.
Calculating the size of your DIY solar system
Consider the number of appliances you plan to power; consult sizing guides.
Installation location
Choose a site with maximum sunlight exposure, considering shading, orientation, and stability.
Preparing the installation site
Ensure the location supports panel weight and provides adequate ventilation.
Installing the racking system
For sloped roofs, attach rails using flashings and sealant; for flat roofs, use concrete blocks or ballasts.
Mounting the solar panels
Align mounting holes with rails and secure panels using stainless steel hardware.
Wiring and interconnection
Connect panels using MC4 connectors, install AC/DC wiring per instructions, and ground all circuits.
Inverter installation
Connect the inverter to the panels, ensuring proper grounding and monitoring its performance.
Installing a battery
If needed, install AC/DC wiring and mount the battery bracket, following safety precautions in the manual.
Final wiring and system activation
Wire all components per your plan, route wires through PV switches to the circuit breaker box, and ensure grounding.
Commissioning
Commissioning verifies system operation and communication between the battery and monitoring system.
Maintenance
Regular maintenance ensures longevity; perform check-ups to keep your system in excellent condition.
Proper system wiring
Wiring solar panels in series increases voltage; connecting positive to negative terminals achieves this.
This method suits installations requiring higher voltage with minimal shading; use MC4 connectors for secure connections.
| Wiring method | Benefits | Considerations |
| Series wiring | Increases total voltage | Requires minimal shading and higher voltage |
| Parallel wiring | Increases amperage, maintains voltage | Ideal when shading impacts performance or adding panels |
| Hybrid wiring | Balances voltage and amperage | Flexible for large PV systems, manages shading and voltage limits |
| Safety wiring | Ensures grounding and safety | Use pre-installed wires and safe practices |
The total voltage should fall within the inverter’s operational range for optimal generation.
Use specific cables like PV wire, MC4 connectors, and overcurrent protection devices like circuit breakers or fuses.
Connect and test system
Install solar panels strategically to maximise sunlight exposure and secure mounting for long-term efficiency.
Wiring and inverters
Convert DC to AC power using a quality inverter; it bridges your PV system to the grid.
Safety measures
Include accessible disconnect switches and familiarise family members with shutdown procedures.
Performance checks
Verify each component’s function by measuring voltage and current outputs and checking the inverter. Regular safety checks enhance system efficiency and longevity.
Monitor and maintain
Monitor your solar panels to gauge performance and longevity.
Monitoring systems
These display solar production data, helping identify issues promptly. Solar Power Authority lists three primary types of solar monitoring systems, each with unique benefits.
Types of solar monitoring
Options include built-in inverter monitoring, third-party monitoring, and module-level monitoring. Choose based on your needs; module-level monitoring offers detailed tracking of individual panels.
Solar consumption components
Power optimisers or charge controllers enhance performance and monitoring. The Modbus communication protocol enables data exchange between components.
Benefits of monitoring
Efficient monitoring helps detect issues like shading or malfunctions early, ensuring optimal performance. This promotes system health, increasing energy efficiency and financial returns.
Should you DIY your solar?
DIY solar installations provide an affordable, albeit risky alternative. The balance between savings and safety is critical. Echoing this sentiment, Zoltan Nemeth, CEO of Veep Energy, emphasises, “While DIY solar installations may seem cost-effective, they often lead to safety hazards and non-compliance with regulations. We’ve encountered cases where improper installations resulted in panels detaching and posing significant risks.”
We hope this article has answered all the questions you have about DIY solar panels and systems. If you have any other questions, post a comment below and we’ll ask the experts to get back to you asap!
